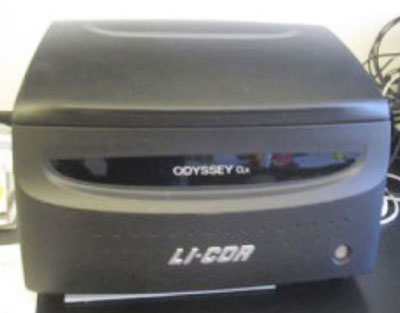

Get consistent, reproducible digital images, without the hassles and unpredictability of film with the Li-Cor Odyssey CLx Infrared Imaging System. See both strong and faint bands clearly in the same image, with great sensitivity and no image saturation. You can capture all the detail and complexity of your data with 6 logs of linear dynamic range which makes your results more reproducible.



Image Field Size: 25 cm x 25 cm
Dynamic Range: 4 logs (Manual); >6 logs (Auto)
Laser Lifetime: 40,000 hours typical
700 Channel Laser Source: Solid-state diode laser at 685 nm
800 Channel Laser Source: Solid-state diode laser at 785 nm
Detectors: Silicon avalanche photodiodes
Scanning Speed: 5 – 40 cm/s
Resolution: 21 – 337 µm
Focusing Range: Microscope is adjustable 0 mm – 4 mm above the scan bed to obtain best signal-to-noise ratio
Dimensions (instrument only): 37 H × 53 W × 62 D cm (15 × 21 × 24.5 inches)
Weight: 33 kg (72lbs)
